Database Snapshot

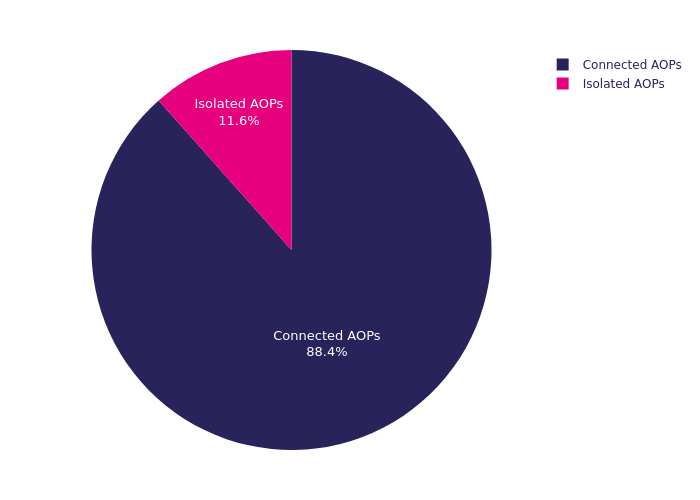

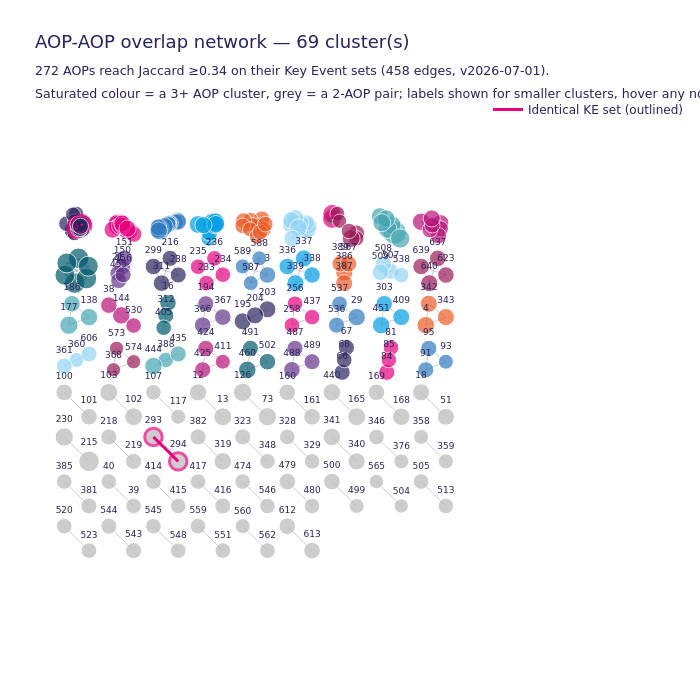

What this measures: Analyzes the connectivity of AOPs based on shared Key Events. Connected AOPs share at least one Key Event with other AOPs, while isolated AOPs have entirely unique Key Events. This reveals the degree of overlap and interconnection in the AOP knowledge base.

Data source: Two SPARQL queries: one counts total AOPs, the other counts AOPs that share at least one Key Event with another AOP (via aopo:has_key_event). The difference gives the isolated AOP count.

Known limitations: Connectivity is determined solely by shared Key Events declared via aopo:has_key_event. Implicit relationships or shared stressors are not considered.

SELECT ?graph (COUNT(DISTINCT ?aop) AS ?total_aops)
WHERE {
  GRAPH ?graph {
    ?aop a aopo:AdverseOutcomePathway .
  }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph) LIMIT 1

SELECT ?graph (COUNT(DISTINCT ?aop1) AS ?connected_aops)
WHERE {
  GRAPH ?graph {
    ?aop1 aopo:has_key_event ?ke .
    ?aop2 aopo:has_key_event ?ke .
    FILTER(?aop1 != ?aop2)
  }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph) LIMIT 1

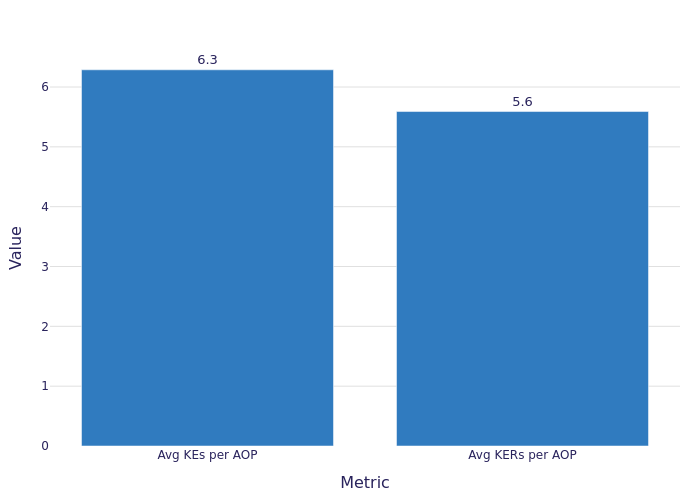

What this measures: Calculates the average number of Key Events and Key Event Relationships per AOP in the selected database version. This metric indicates the typical structural complexity of AOPs.

Data source: SPARQL queries count the total number of AOP-to-KE and AOP-to-KER relationships (via aopo:has_key_event and aopo:has_key_event_relationship), then divide by the total number of AOPs.

Known limitations: Averages can be skewed by a few very large or very small AOPs. The metric does not distinguish between well-developed and stub AOPs. Relationships must be explicitly declared in RDF.

SELECT ?graph (COUNT(?aop) AS ?count)
WHERE {
  GRAPH ?graph { ?aop a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph) LIMIT 1

SELECT ?graph (COUNT(?ke) AS ?count)
WHERE {
  GRAPH ?graph { ?aop a aopo:AdverseOutcomePathway ; aopo:has_key_event ?ke . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph) LIMIT 1

SELECT ?graph (COUNT(?ker) AS ?count)
WHERE {
  GRAPH ?graph { ?aop a aopo:AdverseOutcomePathway ; aopo:has_key_event_relationship ?ker . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph) LIMIT 1

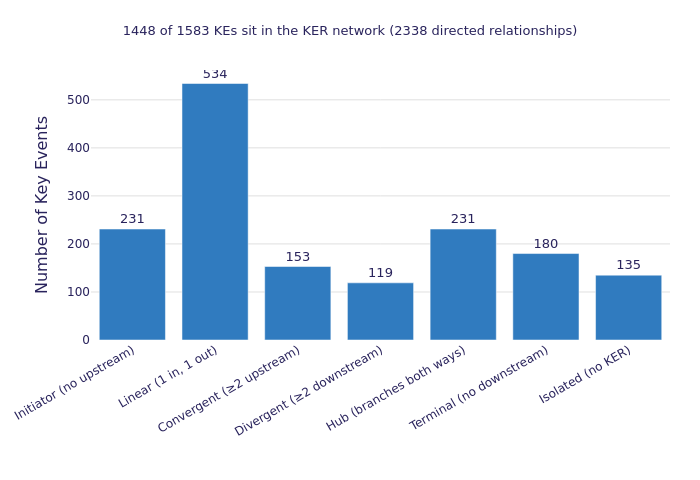

What this measures: Classifies every Key Event by its position in the directed KER network (upstream KE → downstream KE): initiators (no upstream), terminals (no downstream), linear links, convergent/divergent branch points, two-way hubs, and KEs in no KER (isolated). The subtitle reports how many KEs and directed relationships form the network.

Data source: SPARQL retrieves distinct upstream/downstream KE pairs from KeyEventRelationships; Python counts each KE's distinct upstream (in) and downstream (out) neighbours and bins by (in, out) degree. A separate count of all KeyEvents yields the isolated (no-KER) bucket.

Known limitations: Degree uses distinct neighbours (parallel KERs between the same KE pair count once). Direction comes from aopo:has_upstream_key_event / has_downstream_key_event; KERs missing either endpoint are excluded. Roles are global across all AOPs, not per-AOP.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT DISTINCT ?up ?down
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ker a aopo:KeyEventRelationship ;
         <http://aopkb.org/aop_ontology#has_upstream_key_event> ?up ;
         <http://aopkb.org/aop_ontology#has_downstream_key_event> ?down .
  }
}

SELECT (COUNT(DISTINCT ?ke) AS ?ke_count)
WHERE { GRAPH <http://aopwiki.org/graph/2026-07-01> { ?ke a aopo:KeyEvent . } }

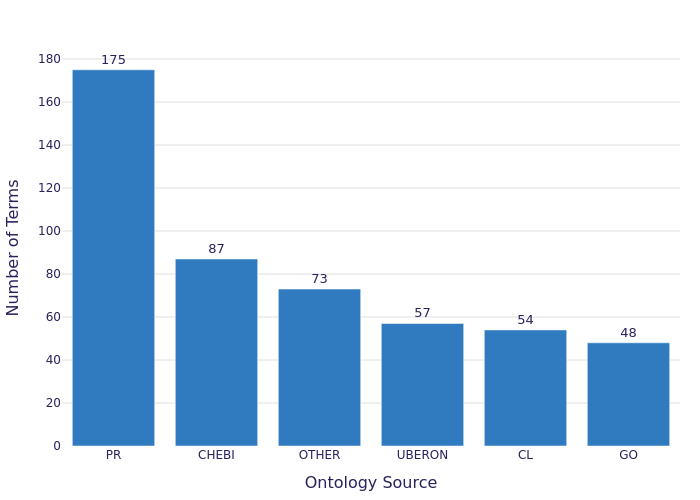

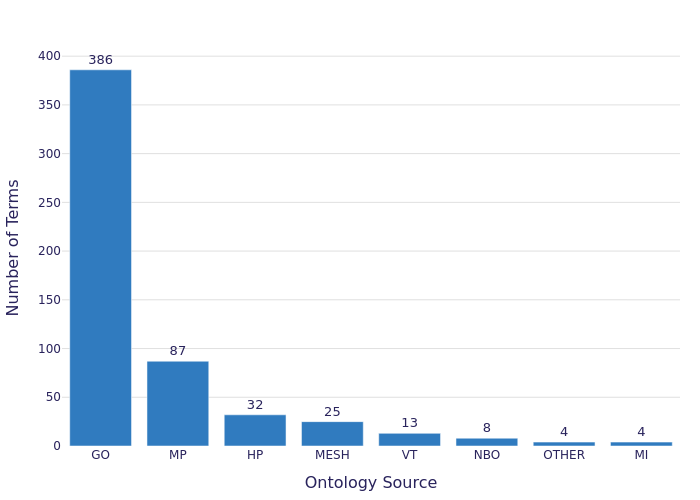

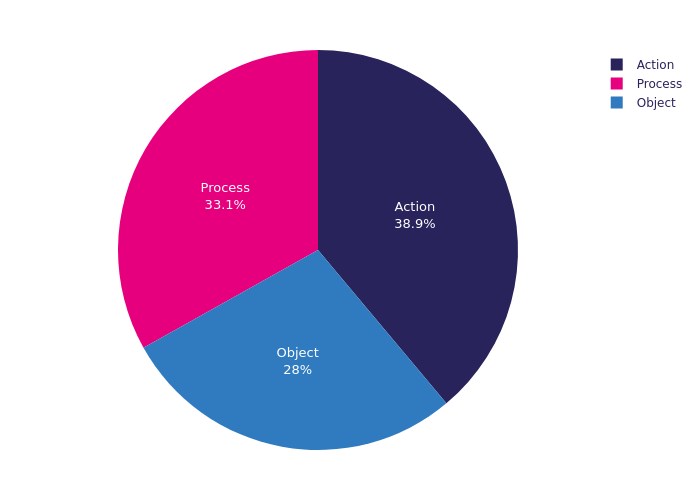

What this measures: Shows the distribution of Key Event Component annotations (Biological Process, Biological Object, and Action) across all Key Events. Each KE can have up to three component annotations describing the biological context.

Data source: A SPARQL query counts distinct biological process, object, and action terms attached to Key Events via the aopo:hasBiologicalEvent hop. Each KE links to a biological-event node, which carries optional aopo:hasProcess, aopo:hasObject, and aopo:hasAction annotations.

Known limitations: Only counts presence/absence of each component type, not the quality or specificity of annotations. KEs without any component annotations are not shown. Some KEs may have multiple annotations of the same type.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT
  (COUNT(DISTINCT ?process) AS ?processes)
  (COUNT(DISTINCT ?object) AS ?objects)
  (COUNT(DISTINCT ?action) AS ?actions)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent ;
        aopo:hasBiologicalEvent ?bioevent .
    OPTIONAL { ?bioevent aopo:hasProcess ?process . }
    OPTIONAL { ?bioevent aopo:hasObject ?object . }
    OPTIONAL { ?bioevent aopo:hasAction ?action . }
  }
}

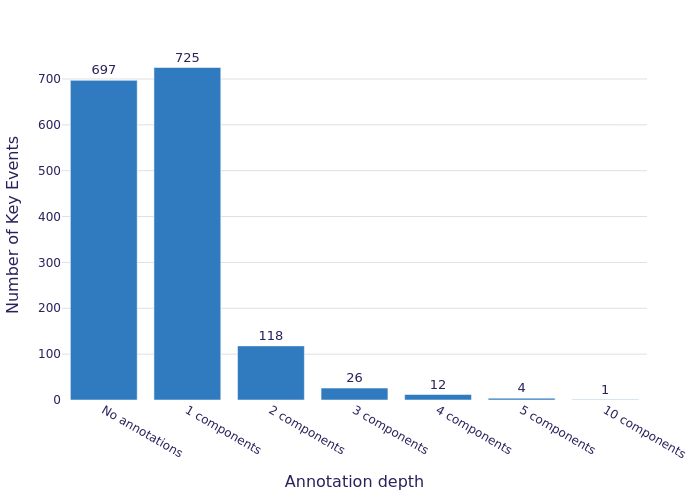

What this measures: Measures how thoroughly each Key Event is annotated by counting how many of the three possible KE Component types (Process, Object, Action) each KE has. Shows the distribution across 0, 1, 2, or 3 annotations per KE.

Data source: A SPARQL query counts the number of biological-event annotations on each Key Event (?ke aopo:hasBiologicalEvent ?bioevent). Each bioevent carries at most one of aopo:hasProcess, aopo:hasObject, or aopo:hasAction, so the bioevent count equals the KE's component-annotation depth. The plot bins KEs by this count (0, 1, 2, 3+ components).

Known limitations: Treats all component types equally regardless of scientific importance. A KE with 3 low-quality annotations ranks higher than one with 1 highly specific annotation. Only measures breadth, not depth of annotation.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?ke (COUNT(DISTINCT ?bioevent) AS ?annotation_depth)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent .
    OPTIONAL { ?ke aopo:hasBiologicalEvent ?bioevent . }
  }
}
GROUP BY ?ke
ORDER BY DESC(?annotation_depth)

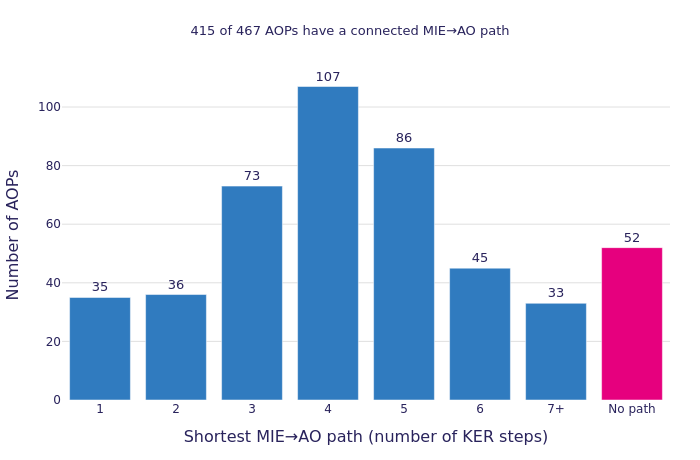

What this measures: For each AOP with both a Molecular Initiating Event and an Adverse Outcome, the shortest number of KER steps from any MIE to any AO through that AOP's own Key Event Relationships. AOPs whose MIE and AO are not connected via their KERs fall in 'No path' (highlighted) — a structural-completeness signal.

Data source: SPARQL retrieves each AOP's MIE(s) and AO(s), and separately its KER edges (upstream→downstream KE). Python builds each AOP's directed subgraph and BFS-computes the shortest MIE→AO distance, then bins (1..6, 7+, No path).

Known limitations: Uses only KERs declared on the AOP (aopo:has_key_event_relationship); a KER shared across AOPs contributes to each. AOPs missing a MIE or an AO are excluded. Path length counts KER hops, not weight of evidence.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?aop ?mie ?ao
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         <http://aopkb.org/aop_ontology#has_molecular_initiating_event> ?mie ;
         <http://aopkb.org/aop_ontology#has_adverse_outcome> ?ao .
  }
}

SELECT ?aop ?up ?down
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         <http://aopkb.org/aop_ontology#has_key_event_relationship> ?ker .
    ?ker <http://aopkb.org/aop_ontology#has_upstream_key_event> ?up ;
         <http://aopkb.org/aop_ontology#has_downstream_key_event> ?down .
  }
}

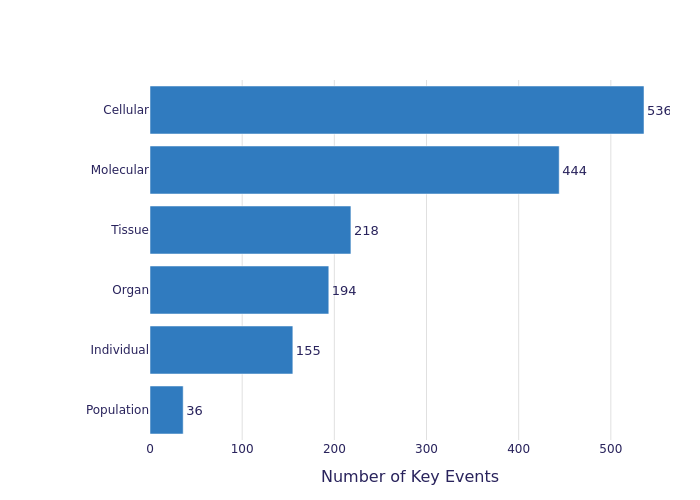

What this measures: Distribution of Key Events across biological levels of organization (molecular, cellular, tissue, organ, organism, population). Reveals which biological scales are most represented in the AOP-Wiki knowledge base.

Data source: SPARQL query counts distinct Key Events grouped by their Level of Biological Organisation annotation (NCI Thesaurus property C25664). KEs without this annotation appear as 'Not Annotated'.

Known limitations: Not all Key Events have biological level annotations. Unannotated KEs appear as 'Not Annotated' and may dominate the chart. The level vocabulary depends on how curators annotated each KE. Coverage varies by version as curation progresses.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?level_label (COUNT(DISTINCT ?ke) AS ?count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent .
    OPTIONAL {
      ?ke <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25664> ?level_obj .
    }
    BIND(IF(BOUND(?level_obj), STR(?level_obj), "Not Annotated") AS ?level_label)
  }
}
GROUP BY ?level_label
ORDER BY DESC(?count)

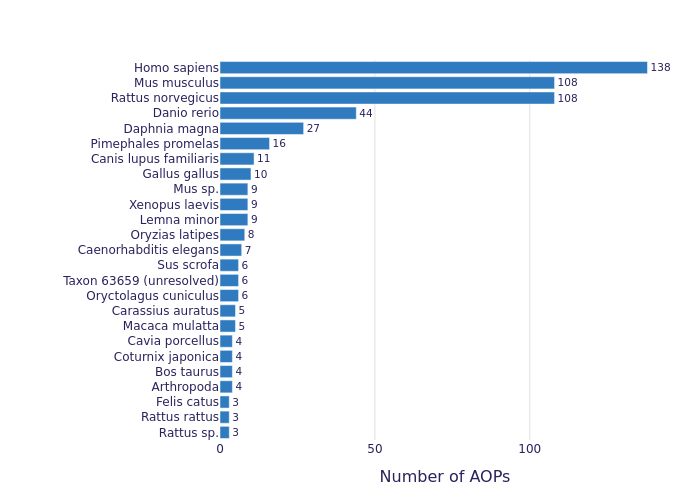

What this measures: Top 25 species annotated as taxonomically applicable to AOPs (via the `NCBITAXON/131567` predicate). Resolved from NCBI taxon IDs to scientific names using a curated label map (`static/data/ncbi_taxon_labels.json`, 133 species covering everything currently in AOP-Wiki). Both AOP-Wiki storage formats — modern `NCBITAXON/<id>` URIs and legacy `WCS_<id>` strings — are coalesced into a single bar per species. New species not yet in the label map render as `Taxon <id> (unresolved)` so they remain visible.

Data source: SPARQL pulls raw (`?aop`, `?taxon_obj`) pairs filtered to AOPs and the `131567` predicate, then Python aggregates per NCBI taxon ID (regex `(\d+)$` against the raw value handles both URI and `WCS_` formats). `WikiUser_<id>` strings — curator user IDs that historically leaked into the taxonomy field, not taxa — are filtered out; their count is logged for curation follow-up.

Known limitations: Only AOPs with an explicit `131567` annotation are shown. A single AOP may carry multiple taxa (it will then contribute to multiple bars). The label map is curated, not live: new species in future snapshots will display as `Taxon NNNN (unresolved)` until the map is regenerated. `WikiUser_NN` entries are filtered out, masking a known data-quality issue — see the dashboard logs for the count.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?aop ?taxon_obj
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway .
    ?aop <http://purl.bioontology.org/ontology/NCBITAXON/131567> ?taxon_obj .
  }
}

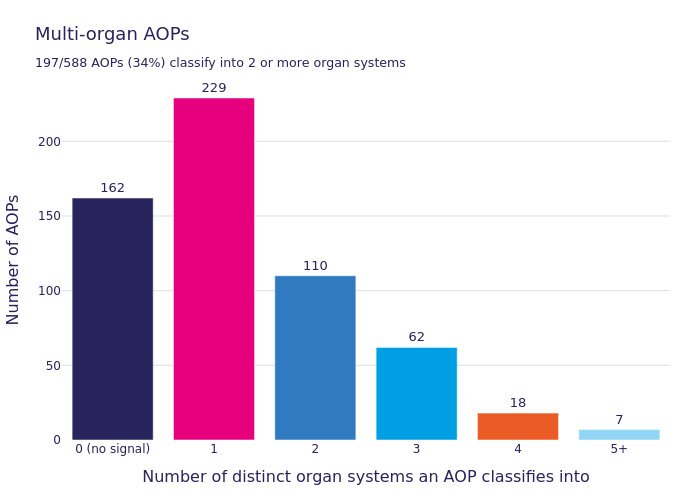

What this measures: Distribution of AOPs by the number of distinct organ systems they classify into across Signals A, A', B, and C (excluding the No-annotation sentinel). Answers 'how many AOPs are single-organ vs multi-organ?'. The raw-data toggle lists every multi-organ AOP with its full bucket set, so you can inspect which pathways span e.g. Endocrine + Reproductive + Nervous.

Data source: Reuses the same SPARQL pull and ontology resolution as the AOP Coverage plot. For each AOP we count the number of distinct organ-system buckets it lands in via any of the four signals.

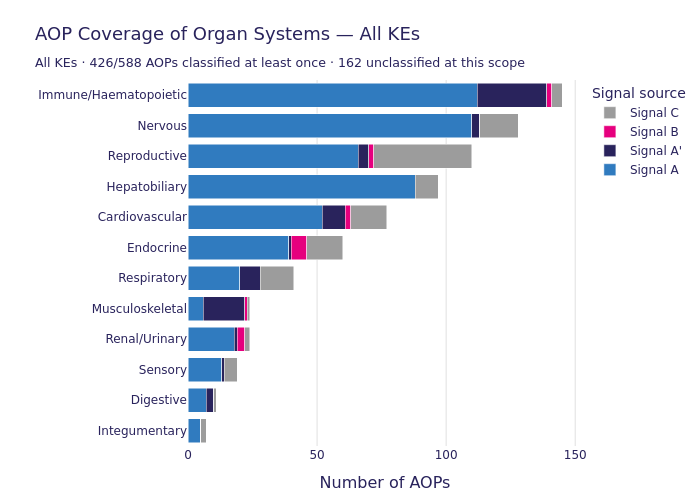

How the mapping works:

1. Step 1 — SPARQL pull. One query per snapshot collects every AOP, its member Key Events, and any IRIs in the four annotation predicates: aopo:OrganContext, aopo:CellTypeContext, aopo:hasObject (inside aopo:hasBiologicalEvent), and aopo:hasProcess. AOP titles are pulled too — Signal C runs on them.
2. Step 2 — UBERON / CL → bucket via Ubergraph (Signals A and A'). Anatomical IRIs are resolved by transitive (part_of | subClassOf)* closure to a small set of anchor IRIs per bucket — e.g. Nervous = UBERON_0001016 (nervous system); Hepatobiliary = liver + gallbladder + bile duct. Anchor-specificity pruning then drops reached anchors that are themselves ancestors of other reached anchors — so liver (UBERON:0002107) classifies only as Hepatobiliary even though UBERON places it under both digestive and endocrine systems. The lookup runs offline against https://ubergraph.apps.renci.org/sparql and is cached at static/data/organ_system_cache.json. Intentional dual-anchors are preserved: pancreas (UBERON_0001264) is its own anchor for both Digestive and Endocrine because it is both an exocrine digestive organ and an endocrine gland — so pancreas-derived terms classify to both.
3. Step 3 — Process / Phenotype signal (Signal B). Three resolution paths into the same 13 buckets: (a) GO biological-process via RO:0002296 (results_in_development_of) → UBERON anchor (~3 terms); (b) HP and MP phenotypes via their rdfs:label matched against the Signal-C bucket regex — this replaces the previous UPHENO:0000001 approach, which Ubergraph materialises as an over-broad anatomy closure (hepatic-steatosis and microvesicular-hepatic-steatosis return the same 35 UBERON targets including endocrine and digestive system). Label-regex gives mono-organ classification when the phenotype name names an organ system. Phenotypes whose label contains no organ keyword (e.g. behavioural HP/MP terms) are NOT classified.
4. Step 4 — Keyword regex on AOP titles (Signal C, exploratory). Each AOP title is scanned with a bucket-specific regex set, e.g. Nervous = \bneuro, \bsynap, \bmyelin, …; Hepatobiliary = \bhepat, \bliver\b, \bsteatosis\b, …; Cardiovascular = \bcardio, \bheart\b, …. Lowest-confidence signal, shown in grey throughout.
5. Step 5 — Editorial override layer. A small project-owned override layer is applied after the ontology resolution to handle terms where the project's framing diverges from UBERON. Currently a single entry: blood (UBERON_0000178) is reported under both Cardiovascular and Immune/Haematopoietic — UBERON places it structurally under haematopoietic only, but toxicology practice frames blood-borne effects as cardiovascular too.
6. Step 6 — Aggregate per AOP. An AOP is counted in a bucket if any of its member KEs (Signals A/A'/B) or its own title (Signal C) classifies into it. The bar segment colour shows the highest-confidence signal that classified the AOP–bucket pair (A > A' > B > C). AOPs can belong to multiple buckets — see the Multi-organ AOPs plot.
7. Step 7 — Source code. Full classifier (~300 LOC, covering classify_anatomy, classify_process, classify_text, the SIGNAL_ORDER reducer, the apical-level filter, and AO-only filter): see plots/organ_systems.py on GitHub. The ontology cache builder is at scripts/build_organ_system_cache.py.

Known limitations: An AOP appearing in multiple buckets does not necessarily mean it is biologically multi-system — it can also mean Signal C (keywords) added an extra bucket on top of Signal A's curated anatomy. The CSV preserves which signal(s) contributed each bucket so this is auditable.

Browse full curated mapping (JSON)

SELECT ?aop ?aop_title ?ao ?ke ?organ ?cell ?obj ?proc
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         <http://purl.org/dc/elements/1.1/title> ?aop_title ;
         aopo:has_key_event ?ke .
    OPTIONAL { ?aop aopo:has_adverse_outcome ?ao . }
    OPTIONAL { ?ke aopo:OrganContext ?organ . }
    OPTIONAL { ?ke aopo:CellTypeContext ?cell . }
    OPTIONAL {
      ?ke aopo:hasBiologicalEvent ?be .
      OPTIONAL { ?be aopo:hasObject ?obj . }
      OPTIONAL { ?be aopo:hasProcess ?proc . }
    }
  }
}

# Signal A only — curated anatomy directly on Key Events
SELECT ?aop ?ke ?organ_or_cell
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
    { ?ke aopo:OrganContext   ?organ_or_cell . }
    UNION
    { ?ke aopo:CellTypeContext ?organ_or_cell . }
  }
}

# Signal A' only — UBERON / CL appearing as hasObject inside a biological event
SELECT ?aop ?ke ?obj
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
    ?ke  aopo:hasBiologicalEvent ?be .
    ?be  aopo:hasObject ?obj .
    FILTER( STRSTARTS(STR(?obj), "http://purl.obolibrary.org/obo/UBERON_")
         || STRSTARTS(STR(?obj), "http://purl.obolibrary.org/obo/CL_") )
  }
}

# Signal B only — GO biological-process terms (bridged to buckets in Python)
SELECT ?aop ?ke ?proc
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
    ?ke  aopo:hasBiologicalEvent ?be .
    ?be  aopo:hasProcess ?proc .
    FILTER( STRSTARTS(STR(?proc), "http://purl.obolibrary.org/obo/GO_") )
  }
}

# Signal C precursor — fetch AOP and AO titles (Signal C runs as regex in
# Python against these literals; the curated patterns are listed at
# /api/organ-system-buckets under "keyword_patterns").
SELECT ?aop ?aop_title ?ao ?ao_title
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         <http://purl.org/dc/elements/1.1/title> ?aop_title .
    OPTIONAL {
      ?aop aopo:has_adverse_outcome ?ao .
      OPTIONAL { ?ao <http://purl.org/dc/elements/1.1/title> ?ao_title . }
    }
  }
}

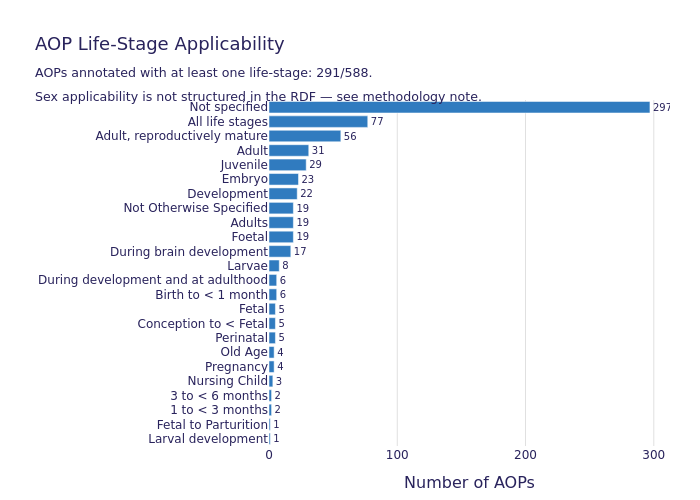

What this measures: Counts how many AOPs declare each life-stage applicability label (Adult, Juvenile, Embryo, All life stages, etc.) via aopo:LifeStageContext. An AOP with no LifeStageContext literal at all is reported as Not specified. AOPs with multiple life-stage labels contribute once per label.

Data source: Single SPARQL query selecting every aopo:AdverseOutcomePathway and OPTIONAL aopo:LifeStageContext literal in the selected snapshot. Aggregation happens in Python after deduplicating per AOP.

Known limitations: aopo:LifeStageContext values are free-text literals chosen by curators — there is no fixed controlled vocabulary, so spelling variants (e.g. "Adult" vs "Adults") appear as distinct bars. Sex applicability is NOT exposed as a structured RDF predicate; it is only described inside free-text aopo:AopContext literals and cannot be machine-aggregated reliably. The dashboard surfaces this gap rather than guessing.

SELECT ?aop ?life_stage
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway .
    OPTIONAL { ?aop aopo:LifeStageContext ?life_stage . }
  }
}

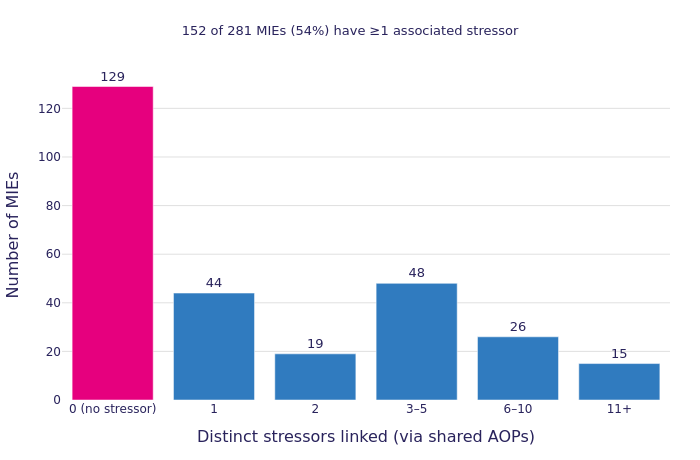

What this measures: Bins Molecular Initiating Events by how many distinct stressors are annotated on the AOPs that contain them. The '0 (no stressor)' bar (highlighted) is the curation gap — MIEs with no known chemical/biological trigger. The subtitle reports the overall share of MIEs with at least one associated stressor.

Data source: SPARQL query, per MIE, counts distinct stressors (nci:C54571) on the AOPs referencing that MIE via aopo:has_molecular_initiating_event. MIEs are then binned in Python (0, 1, 2, 3-5, 6-10, 11+).

Known limitations: Stressors are annotated at the AOP level, not directly on the MIE, so coverage is inferred through shared AOPs — an AOP's stressors are attributed to its MIE. An MIE shared by several AOPs aggregates all their stressors. Reflects annotation presence, not stressor-MIE causal specificity.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?mie (COUNT(DISTINCT ?stressor) AS ?stressor_count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         <http://aopkb.org/aop_ontology#has_molecular_initiating_event> ?mie .
    OPTIONAL { ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C54571> ?stressor . }
  }
}
GROUP BY ?mie
ORDER BY DESC(?stressor_count)

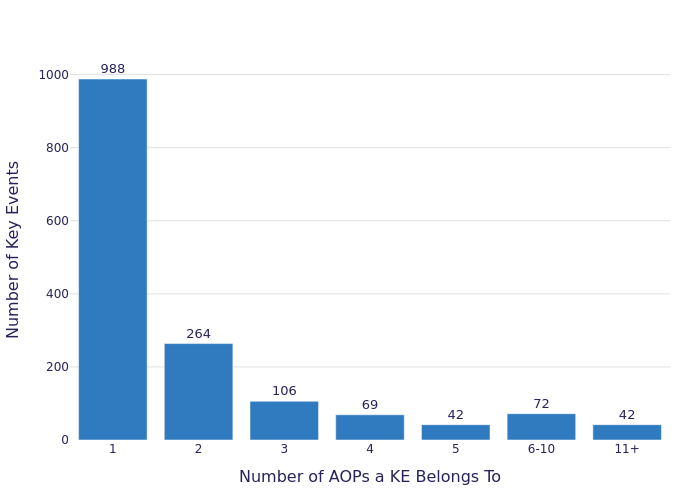

What this measures: Histogram showing the distribution of how many AOPs each Key Event belongs to. Most KEs appear in only 1 AOP, but some are shared across many pathways, indicating shared biological mechanisms.

Data source: SPARQL query counts distinct AOPs per Key Event, then bins the results into discrete categories: 1, 2, 3, 4, 5, 6-10, and 11+ AOPs per KE.

Known limitations: Bins KEs into discrete groups for readability. The '6-10' and '11+' bins aggregate multiple values. Only KEs that are linked to at least one AOP via aopo:has_key_event are included. Orphan KEs (not linked to any AOP) are excluded.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?ke (COUNT(DISTINCT ?aop) AS ?aop_count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
  }
}
GROUP BY ?ke

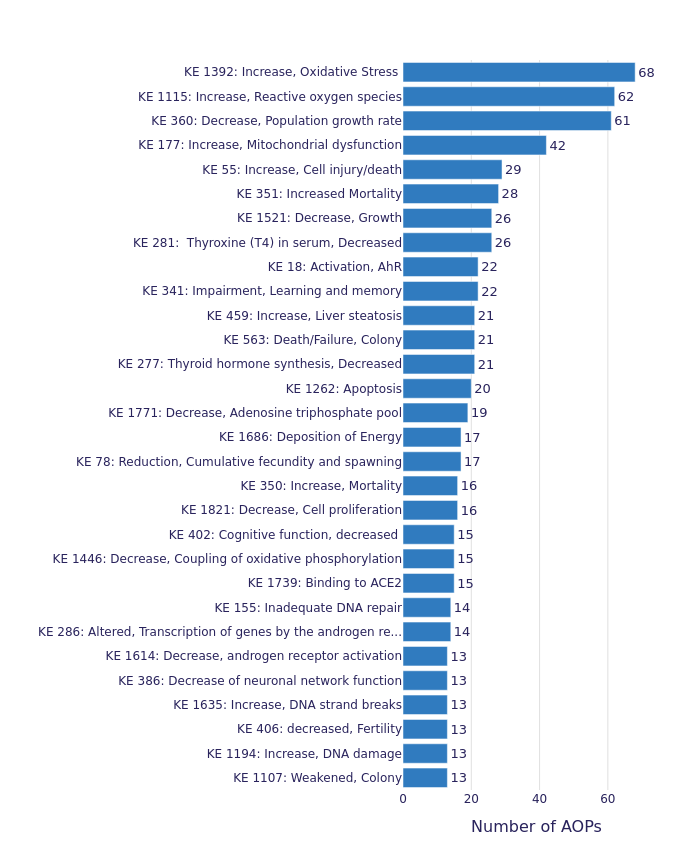

What this measures: Shows the top 30 Key Events that appear in the most AOPs, revealing shared biology across adverse outcome pathways. Clicking a bar opens the corresponding KE page on AOP-Wiki.

Data source: SPARQL query counts distinct AOPs per Key Event via aopo:has_key_event relationships. Only KEs appearing in more than one AOP are shown. KE titles are retrieved via dc:title.

Known limitations: Limited to the top 30 most reused KEs. KE titles may be truncated for readability. The count reflects explicit aopo:has_key_event declarations in the RDF data. Entity links open https://aopwiki.org/events/{id} in a new tab.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?ke (SAMPLE(?title_val) AS ?title) (COUNT(DISTINCT ?aop) AS ?aop_count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
    OPTIONAL { ?ke dc:title ?title_val . }
  }
}
GROUP BY ?ke
HAVING (COUNT(DISTINCT ?aop) > 1)
ORDER BY DESC(?aop_count)
LIMIT 30

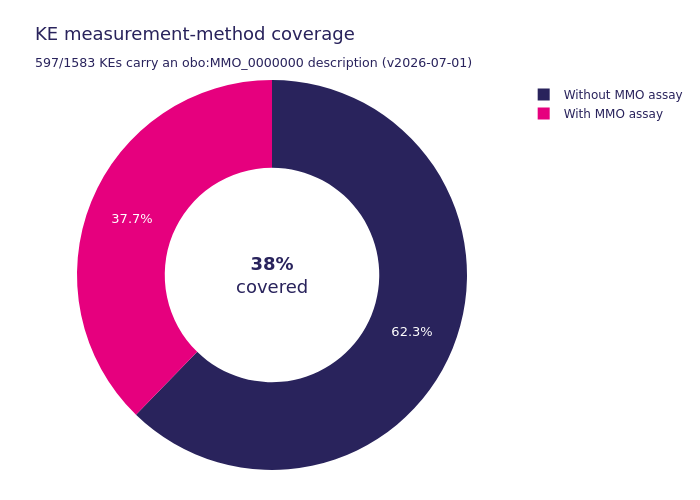

What this measures: Donut showing what fraction of KEs in the latest snapshot carry an `obo:MMO_0000000` measurement-method description. ~37% covered today; the uncovered ~63% is the single biggest NAM-readiness gap visible in AOP-Wiki RDF. Companion to the historical trend on the Trends page.

Data source: Single SPARQL aggregation over the latest named graph: `SUM(IF(BOUND(?mmo), 1, 0))` divided by `COUNT(?ke)`.

Known limitations: Counts presence of any MMO triple — does not assess length or quality of the assay text. KEs reused across AOPs are counted once.

SELECT (SUM(IF(BOUND(?mmo), 1, 0)) AS ?with_mmo)
       (COUNT(?ke) AS ?total)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent .
    OPTIONAL { ?ke <http://purl.obolibrary.org/obo/MMO_0000000> ?mmo }
  }
}

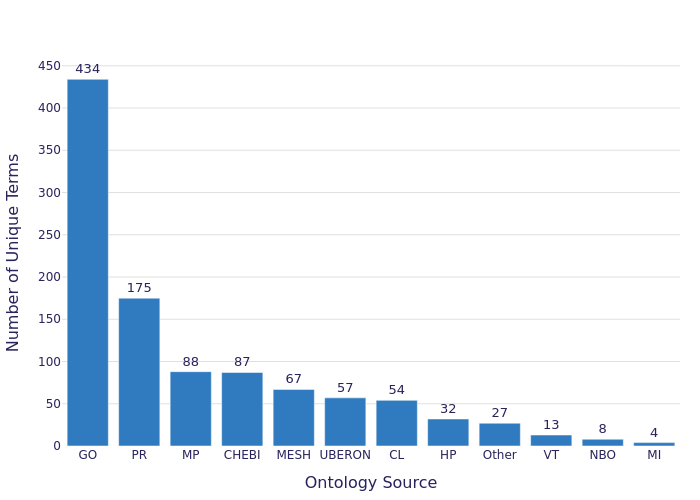

What this measures: Counts the number of unique ontology terms used per source ontology (GO, CHEBI, UBERON, NCBITAXON, etc.) in KE annotations. Shows the breadth of ontology vocabulary in use.

Data source: SPARQL query retrieves all distinct ontology-linked IRIs from biological process and biological object annotations. Python post-processing classifies each IRI by ontology namespace prefix and counts unique terms per source.

Known limitations: Shows aggregate counts of unique terms per ontology, not coverage vs reference ontologies (Phase 5 scope). Classification is based on URI prefix patterns. Terms from unrecognized ontologies appear as 'Other'.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT DISTINCT ?term
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent ;
        aopo:hasBiologicalEvent ?be .
    { ?be aopo:hasProcess ?term . }
    UNION
    { ?be aopo:hasObject ?term . }
  }
  FILTER(isIRI(?term))
}

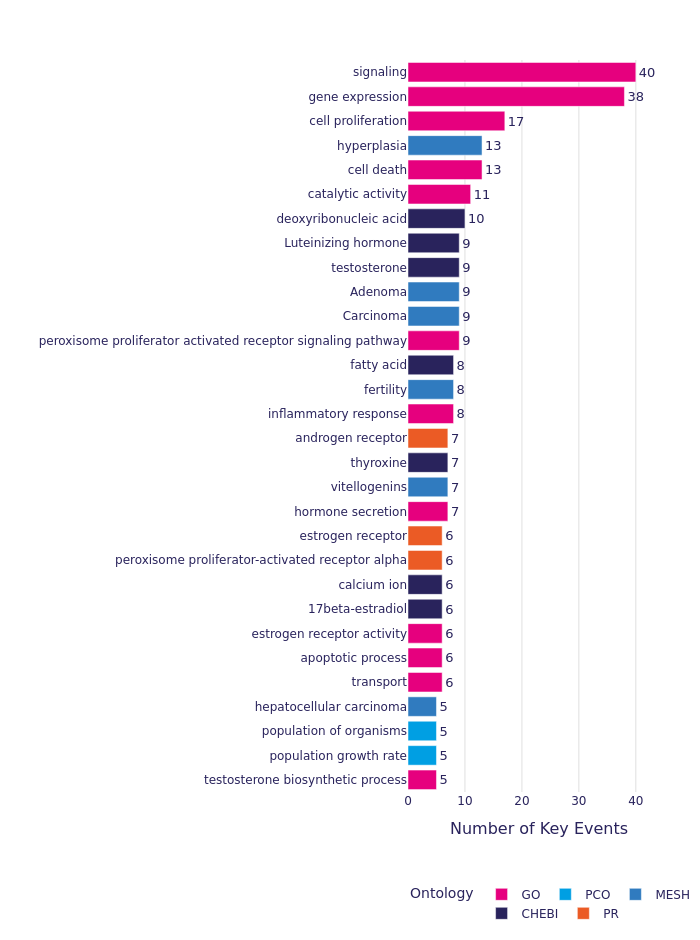

What this measures: Top 30 individual ontology terms referenced by the most Key Events, across all biological-event slots (process, object, action). Bars are labelled by the term's dc:title and coloured by ontology source (GO, CHEBI, PATO, MeSH, ...), revealing which specific biological concepts recur across the AOP-Wiki.

Data source: SPARQL query counts distinct Key Events per ontology term reached via aopo:hasBiologicalEvent and any of aopo:hasProcess / aopo:hasObject / aopo:hasAction. Human-readable labels come from dc:title and the ontology source from dc:source on each term.

Known limitations: Limited to the top 30 terms. A term is counted once per Key Event regardless of slot. Terms lacking a dc:title are shown as a CURIE (e.g. GO:0023052); sources without dc:source are derived from the IRI prefix or labelled 'Other'. Counts reflect explicit biological-event annotations in the RDF data.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?term (SAMPLE(?title_val) AS ?label) (SAMPLE(?source_val) AS ?source) (COUNT(DISTINCT ?ke) AS ?ke_count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent ;
        aopo:hasBiologicalEvent ?be .
    ?be aopo:hasProcess|aopo:hasObject|aopo:hasAction ?term .
    OPTIONAL { ?term dc:title ?title_val . }
    OPTIONAL { ?term dc:source ?source_val . }
  }
  FILTER(isIRI(?term))
}
GROUP BY ?term
ORDER BY DESC(?ke_count)
LIMIT 30

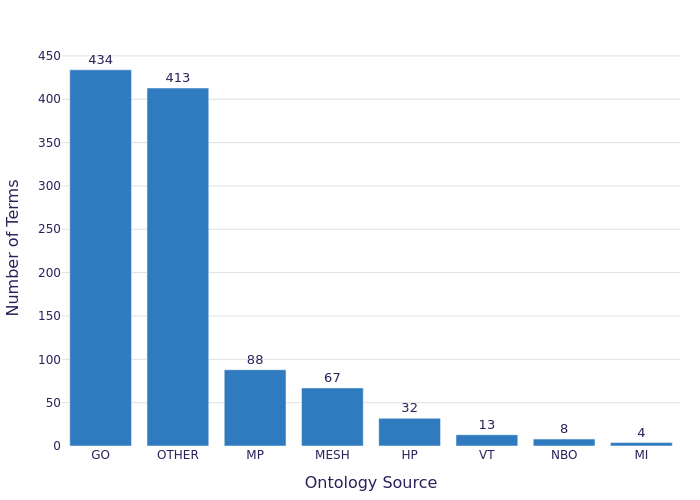

What this measures: Shows the distribution of ontology terms used to annotate Key Event biological components (processes, objects, actions). Groups terms by their source ontology (GO, MP, NBO, MI, VT, MESH, HP, OTHER) to reveal which ontologies are most commonly used in the AOP-Wiki knowledge base.

Data source: SPARQL query retrieves all biological event terms linked to Key Events via aopo:hasProcess, aopo:hasObject, and aopo:hasAction predicates, then classifies each term by its URI prefix to determine the source ontology.

Known limitations: Ontology classification is based on URI prefix matching (e.g., GO_, MP_, HP_). Terms with unrecognized prefixes are grouped as OTHER. Only counts distinct terms, not total usage frequency. Limited to Key Event annotations in the selected version.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?ontology (COUNT(DISTINCT ?term) AS ?count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent ;
        aopo:hasBiologicalEvent ?bioevent .
    {
      ?bioevent aopo:hasProcess ?term .
    } UNION {
      ?bioevent aopo:hasObject ?term .
    } UNION {
      ?bioevent aopo:hasAction ?term .
    }
    BIND(
      IF(STRSTARTS(STR(?term), "http://purl.obolibrary.org/obo/GO_"), "GO",
      IF(STRSTARTS(STR(?term), "http://purl.obolibrary.org/obo/MP_"), "MP",
      IF(STRSTARTS(STR(?term), "http://purl.obolibrary.org/obo/NBO_"), "NBO",
      IF(STRSTARTS(STR(?term), "http://purl.obolibrary.org/obo/MI_"), "MI",
      IF(STRSTARTS(STR(?term), "http://purl.obolibrary.org/obo/VT_"), "VT",
      IF(STRSTARTS(STR(?term), "http://purl.org/commons/record/mesh/"), "MESH",
      IF(STRSTARTS(STR(?term), "http://purl.obolibrary.org/obo/HP_"), "HP", "OTHER"))))))) AS ?ontology)
  }
}
GROUP BY ?ontology

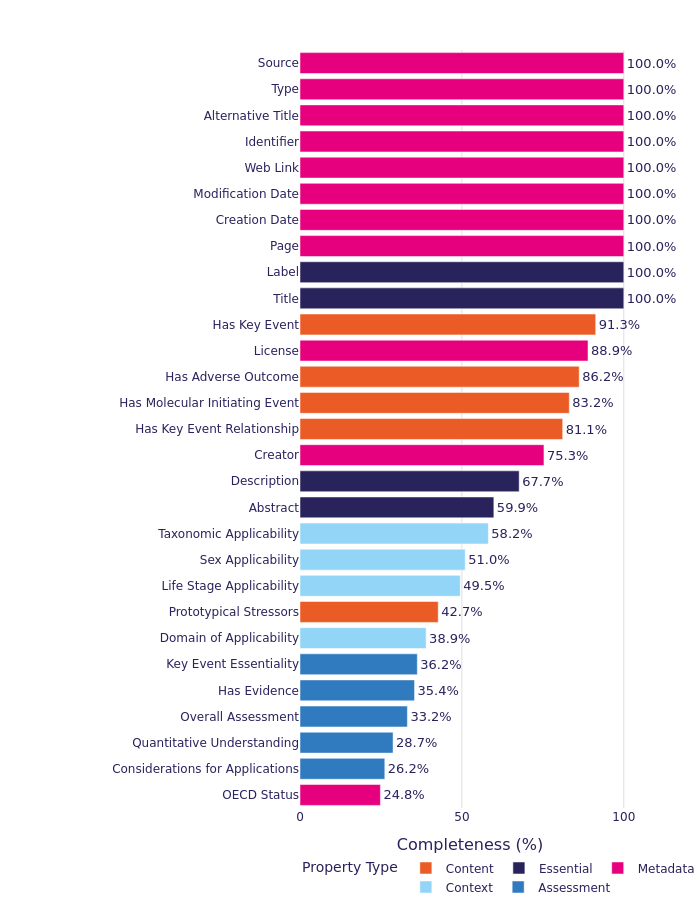

What this measures: Analyzes how completely AOPs are documented by measuring the presence of key metadata properties. Shows the distribution of completeness scores across all AOPs, where completeness is the fraction of non-ubiquitous properties that are filled in.

Data source: Properties are loaded from property_labels.csv which defines expected properties per entity type. For each AOP, SPARQL queries check presence of each property. Properties that are 100% present (always filled) are excluded to focus on informative variation.

Known limitations: Completeness is based on property presence, not quality or accuracy of the data. Properties always present (100%) are excluded from the calculation. The property list is defined externally and may not capture all relevant metadata.

SELECT ?graph (COUNT(DISTINCT ?aop) AS ?total_aops)
WHERE {
  GRAPH ?graph { ?aop a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph) LIMIT 1

SELECT DISTINCT ?p (COUNT(DISTINCT ?aop) AS ?n)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         ?p ?o .
  }
}
GROUP BY ?p

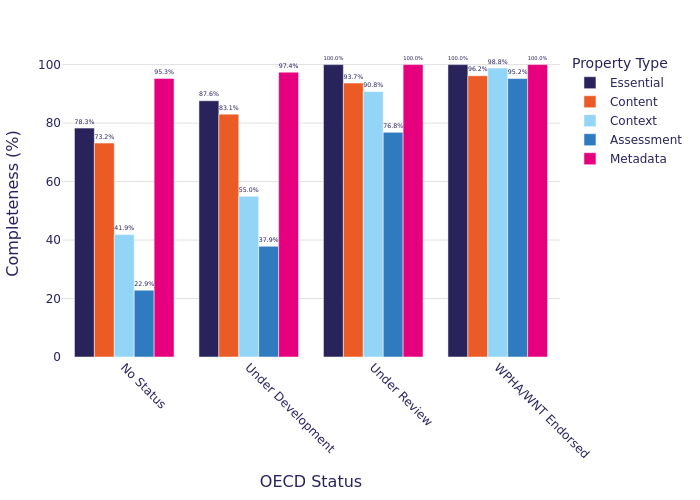

What this measures: Compares AOP completeness scores across OECD approval status categories (e.g., Endorsed, Under Review, Under Development). Reveals whether more mature AOPs tend to be better documented. Properties are grouped into categories: Essential, Content, Context, Assessment, and Metadata.

Data source: Combines AOP completeness data with OECD status information. SPARQL queries retrieve both property presence counts and the OECD status for each AOP. Status is determined via the NCI Thesaurus OECD status URI (http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688).

Known limitations: OECD status data is version-specific and may change between releases. Some AOPs may lack a status annotation. Properties always present (100%) are excluded from completeness calculation. Status categories reflect the OECD approval pipeline stages present in the data.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?status ?p (COUNT(DISTINCT ?aop) AS ?count_with_property)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway .
    OPTIONAL {
      ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688> ?status_obj .
      BIND(STR(?status_obj) AS ?status)
    }
    ?aop ?p ?o .
  }
}
GROUP BY ?status ?p

SELECT ?status (COUNT(DISTINCT ?aop) AS ?total_aops)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway .
    OPTIONAL {
      ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688> ?status_obj .
      BIND(STR(?status_obj) AS ?status)
    }
  }
}
GROUP BY ?status

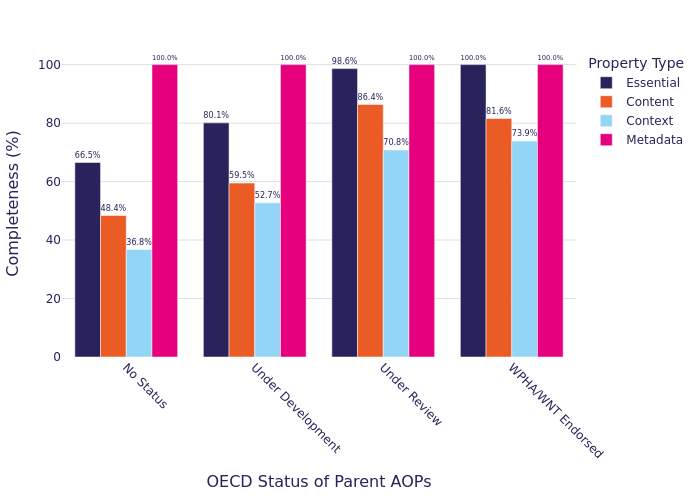

What this measures: Measures completeness of Key Events based on the OECD status of the AOPs they belong to. KEs linked to multiple AOPs with different statuses are counted for each status. Property categories include Essential (Title, Description), Content (Biological components), Context (Applicability), Assessment (Evidence), and Metadata.

Data source: SPARQL queries join KE property presence data with AOP status information via the aopo:has_key_event relationship. Each KE inherits the status of its parent AOP(s).

Known limitations: A KE belonging to multiple AOPs with different OECD statuses will appear in each status group, potentially inflating counts. KEs not linked to any AOP are excluded. Properties always present are excluded from completeness scores.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?status ?p (COUNT(DISTINCT ?ke) AS ?count_with_property)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
    OPTIONAL {
      ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688> ?status_obj .
      BIND(STR(?status_obj) AS ?status)
    }
    ?ke a aopo:KeyEvent ;
        ?p ?o .
  }
}
GROUP BY ?status ?p

SELECT ?status (COUNT(DISTINCT ?ke) AS ?total_kes)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event ?ke .
    OPTIONAL {
      ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688> ?status_obj .
      BIND(STR(?status_obj) AS ?status)
    }
  }
}
GROUP BY ?status

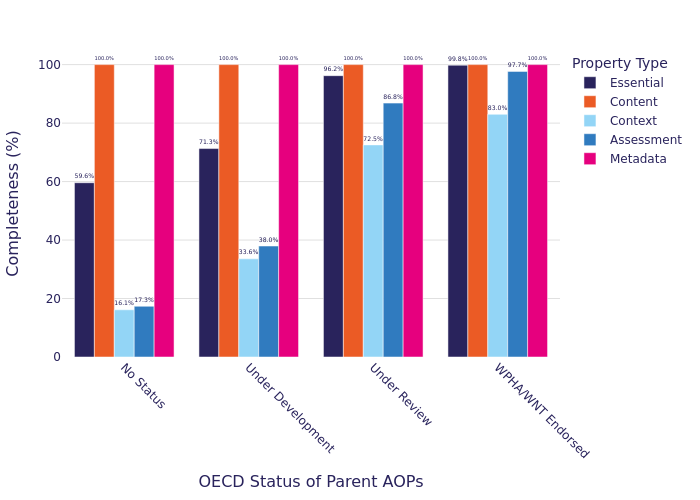

What this measures: Measures completeness of Key Event Relationships based on the OECD status of the AOPs they belong to. KERs linked to multiple AOPs with different statuses are counted for each status. Property categories include Essential, Content, Context, and Metadata.

Data source: SPARQL queries join KER property presence data with AOP status information via the aopo:has_key_event_relationship predicate. Each KER inherits the status of its parent AOP(s).

Known limitations: A KER belonging to multiple AOPs with different OECD statuses will appear in each status group. KERs not linked to any AOP are excluded. Properties always present are excluded from completeness scores.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:AdverseOutcomePathway . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?status ?p (COUNT(DISTINCT ?ker) AS ?count_with_property)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event_relationship ?ker .
    OPTIONAL {
      ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688> ?status_obj .
      BIND(STR(?status_obj) AS ?status)
    }
    ?ker a aopo:KeyEventRelationship ;
         ?p ?o .
  }
}
GROUP BY ?status ?p

SELECT ?status (COUNT(DISTINCT ?ker) AS ?total_kers)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?aop a aopo:AdverseOutcomePathway ;
         aopo:has_key_event_relationship ?ker .
    OPTIONAL {
      ?aop <http://ncicb.nci.nih.gov/xml/owl/EVS/Thesaurus.owl#C25688> ?status_obj .
      BIND(STR(?status_obj) AS ?status)
    }
  }
}
GROUP BY ?status

What this measures: Shows the distribution of biological process ontology terms used in Key Event annotations. Identifies which ontologies (e.g., GO, MESH, NCIT) are most commonly referenced for describing biological processes in KE component annotations.

Data source: A SPARQL query retrieves biological process URIs reached from Key Events via the aopo:hasBiologicalEvent → aopo:hasProcess path, then groups them by their ontology source namespace.

Known limitations: Only covers processes explicitly annotated in the RDF data. Ontology classification is based on URI prefix patterns. Some processes may be classified differently across ontologies.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?ontology (COUNT(DISTINCT ?process) AS ?count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent ;
        aopo:hasBiologicalEvent ?bioevent .
    ?bioevent aopo:hasProcess ?process .
    BIND(
      IF(STRSTARTS(STR(?process), "http://purl.obolibrary.org/obo/GO_"), "GO",
      IF(STRSTARTS(STR(?process), "http://purl.obolibrary.org/obo/MP_"), "MP",
      IF(STRSTARTS(STR(?process), "http://purl.obolibrary.org/obo/NBO_"), "NBO",
      IF(STRSTARTS(STR(?process), "http://purl.obolibrary.org/obo/MI_"), "MI",
      IF(STRSTARTS(STR(?process), "http://purl.obolibrary.org/obo/VT_"), "VT",
      IF(STRSTARTS(STR(?process), "http://purl.org/commons/record/mesh/"), "MESH",
      IF(STRSTARTS(STR(?process), "http://purl.obolibrary.org/obo/HP_"), "HP", "OTHER"))))))) AS ?ontology)
  }
}
GROUP BY ?ontology

What this measures: Shows the distribution of biological object ontology terms used in Key Event annotations. Identifies which ontologies are most commonly referenced for describing biological objects (molecules, genes, proteins, etc.) in KE component annotations.

Data source: A SPARQL query retrieves biological object URIs reached from Key Events via the aopo:hasBiologicalEvent → aopo:hasObject path, then groups them by their ontology source namespace.

Known limitations: Only covers objects explicitly annotated in the RDF data. Ontology classification is based on URI prefix patterns. Multiple ontology terms may refer to the same biological entity.

SELECT ?graph
WHERE {
  GRAPH ?graph { ?s a aopo:KeyEvent . }
  FILTER(STRSTARTS(STR(?graph), "http://aopwiki.org/graph/"))
}
GROUP BY ?graph
ORDER BY DESC(?graph)
LIMIT 1

SELECT ?ontology (COUNT(DISTINCT ?object) AS ?count)
WHERE {
  GRAPH <http://aopwiki.org/graph/2026-07-01> {
    ?ke a aopo:KeyEvent ;
        aopo:hasBiologicalEvent ?bioevent .
    ?bioevent aopo:hasObject ?object .
    BIND(
      IF(STRSTARTS(STR(?object), "http://purl.obolibrary.org/obo/CL_"), "CL",
      IF(STRSTARTS(STR(?object), "http://purl.obolibrary.org/obo/UBERON_"), "UBERON",
      IF(STRSTARTS(STR(?object), "http://purl.obolibrary.org/obo/CHEBI_"), "ChEBI",
      IF(STRSTARTS(STR(?object), "http://purl.obolibrary.org/obo/GO_"), "GO",
      IF(STRSTARTS(STR(?object), "http://purl.obolibrary.org/obo/PR_"), "PR", "OTHER"))))) AS ?ontology)
  }
}
GROUP BY ?ontology
